SELF-ADHESIVE
RUBBER INSULATING TAPE
J-series self-adhesive rubber insulating
tape, suited for all kinds of cale and wire's insulation
and meal from 1KV to 35KV, it has excellent self-adhesive
performance when they wrapped several minutes, they
can self-adhesive themself to the cable.
SELF-ADHESIVE RUBBER CONCAVE TAPE
B-series Self-Adhesive Rubber Conductive
Tape, suited for 10KV-110KV power cable joint's electric
field screen.
MAIN TECHNOLOGY DATE
Type |
J-10 |
J-10 |
J-21 |
J-31 |
B-20 |
B-50 |
Rated
Voltage |
1KV |
10KV |
10KV |
35KV |
10KV |
110KV |
Usage
temperature |
75℃ |
75℃ |
90℃ |
90℃ |
75℃ |
90℃ |
Tensile
strength |
500% |
500% |
500% |
500% |
500% |
500% |
Volume
Resistivity Rate |
1014Ω.cm |
1014Ω.cm |
1014Ω.cm |
1014Ω.cm |
104Ω.cm |
104Ω.cm |

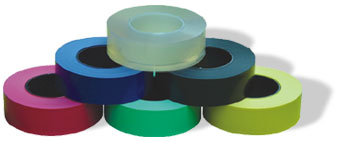

PVC
INSULATHING TAPE
PVC plastic insulating
tape, suited for less than 500v power cable, Improved
protection
and insulating for bus-bars, All kinds of color are:Red、Green、Yellow、Blue、Black、Clarity.

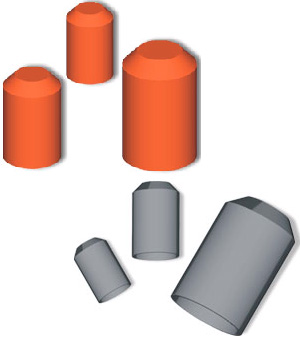

HEAT
SHRINKABEL CABEL END CAP
Suited for power cable、communication
cable when befor used to meal on the end. In order to
protect cable affected with damp and water.
Type |
I.D.
Of supplied(mm) |
I.D.
Of recovered(mm) |
RSM-20/8 |
20 |
8 |
RSM-40/15 |
40 |
15 |
RSM-55/25 |
55 |
25 |
RSM-75/30 |
75 |
30 |
RSM-100/45 |
100 |
45 |
RSM-140/70 |
140 |
70 |
|
