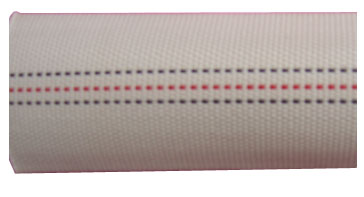

Rubber-Lined
Fire Hose
The hose is made of polyester jacket and rubber lining.
Polyester jacket is constructed of warp in polyester
staple and weft in polyester filament. Lining is made
of natural rubber. The hose is very flexible and resists
high pressure. It has good resistance in rolling and age.
Special adhesive is applied between jacket and rubber.
Therefore, the adhesive strength is improved greatly.
After long time use, the rubber lining is not separated.
The main feature: light, flexible, good adhesive strength
and long service life |
 |
EPDM
lining fire hose
The hose is made of polyester jacket and EPDM lining.
Polyester jacket is constructed of warp in polyester staple
and weft in polyester filament. Lining is made of EPDM.
The hose is very flexible and resists high pressure. It
has good resistance in rolling and age. Special adhesive
is applied between jacket and EPDM. Therefore, the adhesive
strength is improved greatly. After long time use, the
rubber lining is not separated. The main feature: light,
flexible, good adhesive strength and long service life
| JACKET |
POLYESTER |
| LINING |
EPDM |
| WORKING
PRESSURE(BAR) |
8,10,13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
24,30,39,42,48,54,60 |
| SIZES |
1",1-1/2",1-3/4",2",2-1/2",2-3/4",3"
& 4" |
| LENGTH
PER ROLL |
1～32M |
|
|
Pu
lining fire hose
Being lined with  polyurethane,
the hose, made with the equipment and materials which
were imported from Norway and Germany, gets thinner, softer
and lighter. It is more convenient in use, resistant to
high pressure. The weight of unit length is 40% lighter
than the rubber linning hose. And single line length reaches
60m. featuring resistance to wearance, erosion, exteme
coldness and heat, long life
| JACKET |
POLYESTER&PROPLYENE |
| LINING |
PU |
| WORKING
PRESSURE(BAR) |
13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
39,42,48,54,60 |
| SIZES |
1",1-1/2",2",1-3/4",2-3/4",
2-1/2 ",3"&4" |
| LENGTH
PER ROLL |
1～30M |
|
|
pvc
lining fire hose
Our pvc hose lining fire hose is popular with the consumers
it is ligh t
in weight. convenient in usage, low in price . this
product has all kinds of styles ,types and length. The
product can reduce transport charges because it is light
in weight, small in size ,convenient in transport: This
produst cannot be used where it is below freezing.
| JACKET |
POLYESTER
|
| LINING |
PVC |
| LINING
COLOR |
white,
blue, red, yellow, black |
| WORKING
PRESSURE(BAR) |
8,10,13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
24,30,39,42,48,54,60 |
| SIZES |
1",1-1/2",1-3/4",2",2-1/2",2-3/4",3"
& 4" |
| LENGTH
PER ROLL |
1～32M |
|
|
 single
jacket fire hose
The hose consists of 100% polyester plain-woven single
jacket and synthetic rubber and natural rubber lining.
The hose is very good resistance in age and abrasiveness.
The light hose is suitable for normal situation. The standard
color is white.
| JACKET |
POLYESTER |
| LINING |
NATURAL
RUBBER, |
| WORKING
PRESSURE(BAR) |
8,10,13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
24,30,39,42,48,54,60 |
| SIZES |
1",1-1/2",1-3/4",2",2-1/2",2-3/4",3"
& 4" |
| LENGTH
PER ROLL |
1～32M |
|
|
double
jacket fire hose
The hose is made of polyester jacket and rubber lining.
Polyester jacket is constructed of warp in polyester staple
and weft in polyester filament.
Lining is made of natural rubber. The hose is very flexible
and resists high pressure. It has good resistance in rolling
and age. Special adhesive is applied between jacket and
rubber. Therefore, the adhesive strength is improved greatly.
After long time use, the rubber lining is not separated.
The main feature: light, flexible, good adhesive strength
and long service life
| JACKET |
POLYESTER |
| LINING |
NATRUAL
RUBBER, |
| WORKING
PRESSURE(BAR) |
8,10,13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
24,30,39,42,48,54,60 |
| SIZES |
1-1/2",1-3/4",2",
2-1/2",2-3/4",3" & 4" |
| LENGTH
PER ROLL |
1～32M |
|
|
COLORED
FIRE HOSE
Red hose is made of four layers with red appearance. Outside
jacket of fire hose is polyester plain weaving. Inside
is SBR and NBR lining. Special adhesive is between jacket
and rubber lining. No leakage after long use. The external
is red abrasive-resistance, and color is bright. The main
feature: abrasive-resistance, water resistance and no
leakage.
| JACKET |
POLYESTER
& PROPLYENE |
| LINING |
NATURAL
RUBBER, |
| WORKING
PRESSURE(BAR) |
8,10,13,14,16,18,20 |
| BURSTING
PRESSURE(BAR) |
24,30,39,42,48,54,60
|
| SIZES |
1",1-1/2",1-3/4",2",2-1/2",2-3/4",3"
& 4" |
| LENGTH
PER ROLL |
1～32M |
|
| |
| |
|
